i-GLASS TOUGHENED

PRICES FROM £210 TO £785 + VAT PER LINEAR METRE


SWITCHABLE GLASS LONDON.jpg

i-GLASS TOUGHENED 10mm OR 12mm

PRICES FROM £210 TO £785 + VAT PER LINEAR METRE

PERFECT FOR INTERNAL PARTITIONS OR SECONDARY GLAZING



Our I-GLASS™ TOUGHENED tends to be our most popular option worldwide offering a cost effective solution where the liquid crystal Switchable layer is coated down directly to glass. Switchable Glass windows, also known as Smart Glass, switches from frosted to clear at the flick of a switch.




This means that the Switchable coating can be simply applied to any type or thickness of glass creating a solution with optimum clarity and performance. Another major factor is a reduction in manufacturing lead-time, making it the ideal choice for all time critical projects.

Our standard switchable smart glass (single glazed) uses toughened/tempered glass in thicknesses 10mm and 12mm





A simple ON-OFF mode switches the glass from being clear (transparent) to frosted (opaque). In its frosted state the film acts as an electronic blind providing privacy and security for any glass, window or partition.


Larger sizes and custom shapes are also available. Multiple panels can be joined together to create large switchable glazed walls or partitions.



UNBEATABLE PRICES & FAST 4 WEEK LEAD TIMES

MAGIC GLASS LONDON.jpg

RECOMMENDED APPLICATIONS



PRIVACY OR SECURITY GLASS

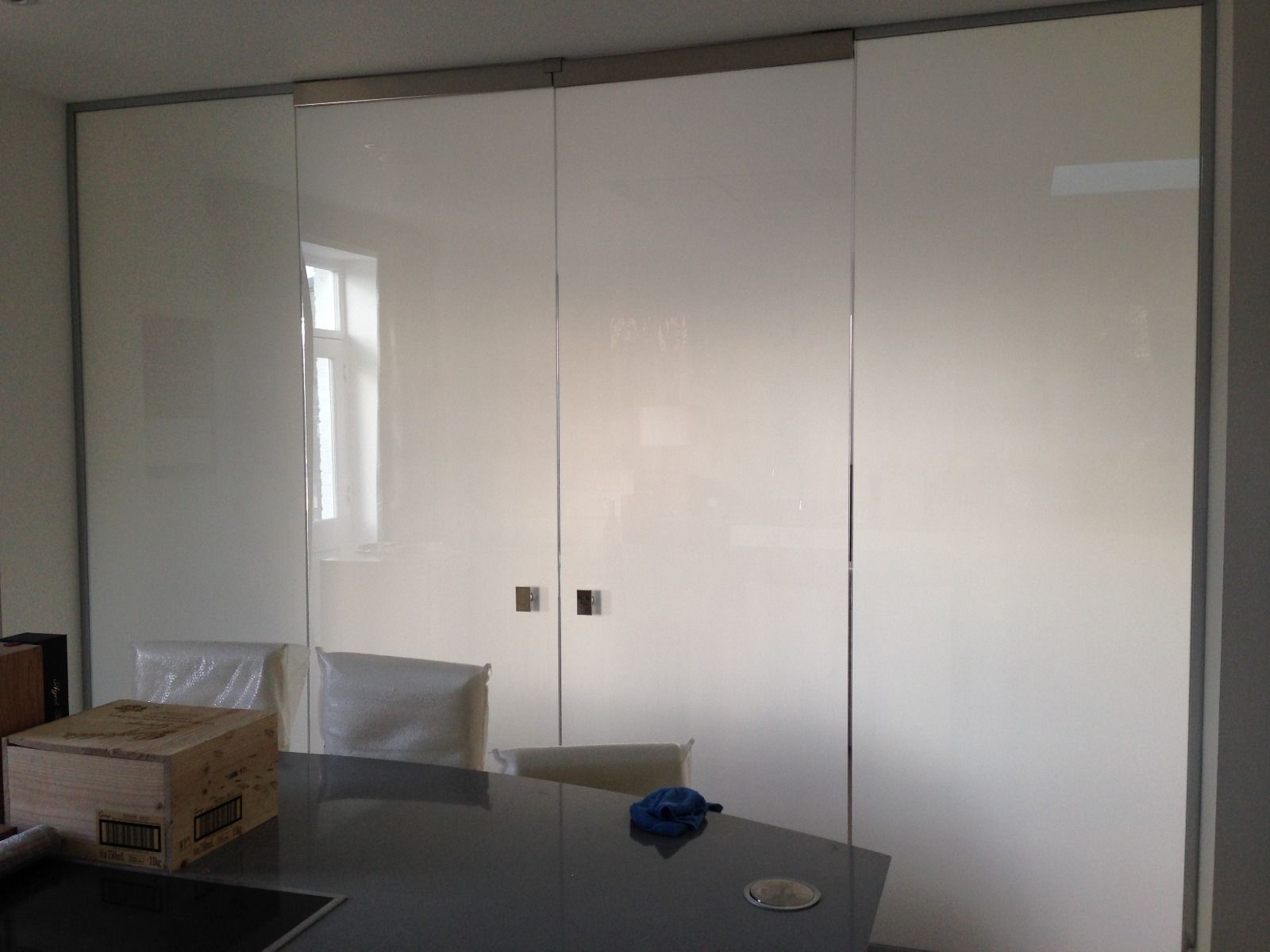

GLASS WALLS & PARTITIONS

VISION PANELS & DOORS

TV/VIDEO SCREENS

FURNITURE DISPLAYS

MANUFACTURING SEALED UNITS




CLICK ME TO SEE ALL THE BENEFITS & USAGES OF OUR SMART GLASS & FILM


SHAPES AVAILABLE



MINIMUM & MAXIMUM SIZES

MINIUM 150mm x 150mm

MAXIMUM 1500mm x 3000mm



WHAT IS REQUIRED & PROVIDED



POWER

WE PROVIDE YOU WITH A 110V/240V TRANSFORMER WITH POWER SURGE PROTECTION WHICH CONNECTS TO THE GLASS BY WIRES ATTACHED TO YOUR 13 AMP FUSED SPUR



CONTROLS

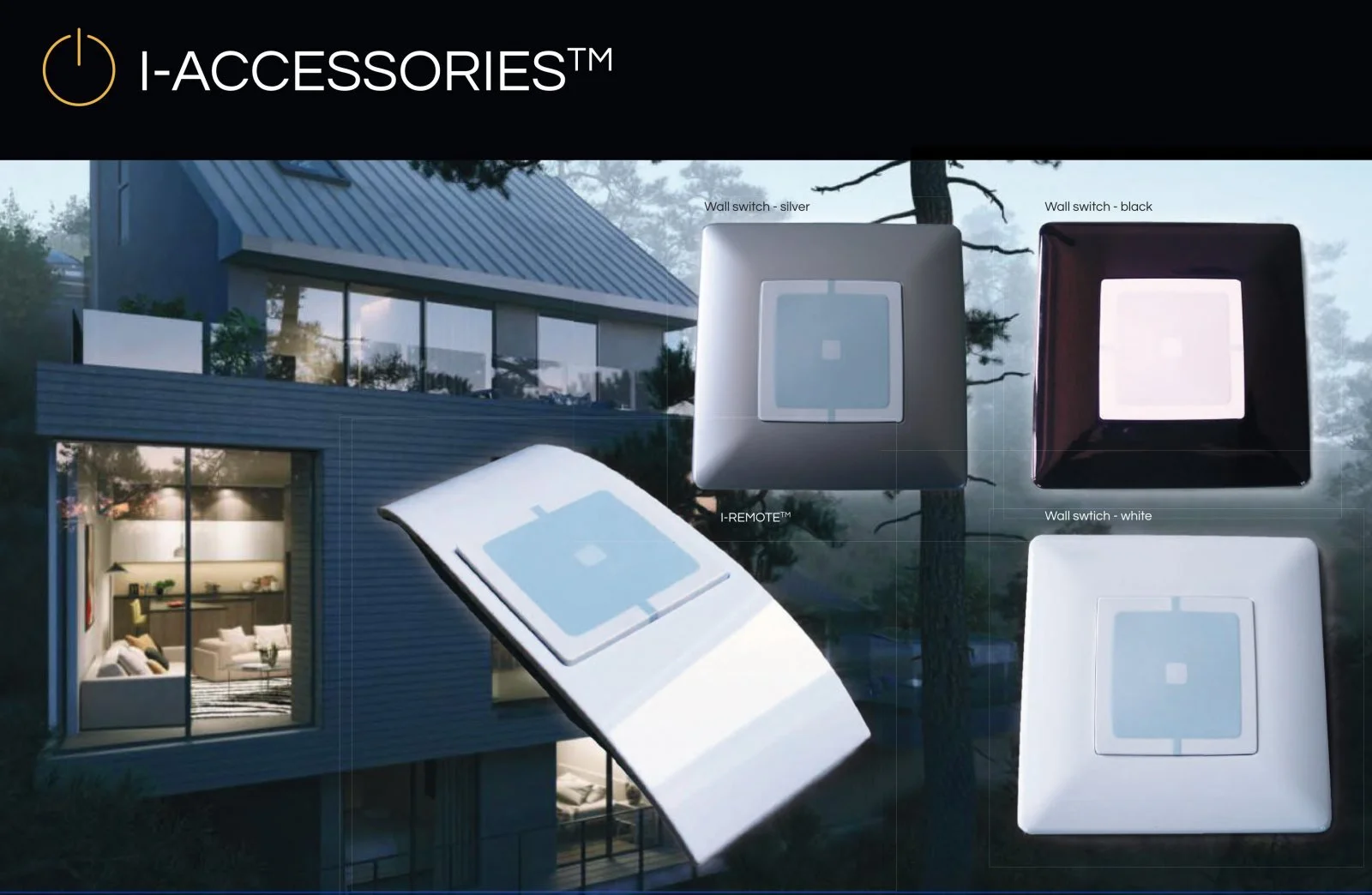

We provide you with an i-remote with wireless receiver to control the glass from up to 10 metres away. you can also have a wireless or hardwired switch if you choose



LEAD TIMES

INCREDIBLE FAST 4 WEEK LEAD TIMES FROM ORDER AS STANDARD OR PREMIUM 2 WEEK FAST TRACK OPTION - YOU WON'T FIND IT FASTER




SPECIFICATION



POWER - 110VAC

FREQUENCY 50/60 HZ


CURRENT - 0.1 AMPERES PER M2


POWER 12 WATTS PER M2


SWITCHING - LESS THAN 1 SECOND



THICKNESS - VARIOUS


LIGHT TRANSMITTANCE - ON 75% -
OFF 67%


HAZE COEFFICIENT - ON (3%) OFF
(87%)




I-GLASS™ Test Procedures

Tested over 3 million switches

High temperatures - >70 degrees C (over 14 days)

High temperature / humidity - >50 degrees C / 95% RH (over 14 days)

Cold temperatures - minus 20 degrees C (over 14 days)

UV filtering - 99% (within 1 year)

Haze Coefficient - On (3%) Off (87%)
